Expose Model Service Externally (Hydra / Knoway)

After the InferX model is successfully deployed, you can expose and access it through the following two methods:

  • Configure the model service in Hydra's MaaS model management page (recommended)
  • Manually register the model service via the LLMBackend CRD in Knoway

Prerequisites

  • InferX model deployment is completed and the model is successfully deployed
  • Known Helm Release name and deployment namespace (e.g., qwen3-06b, public)
  • Confirmed model name (e.g., Qwen/Qwen3-0.6B)

Key Parameter Mapping

Configuration Item Description InferX Corresponding Parameter
Model ID Model identifier used for display/calling on the business side llm-d-modelservice.llm-d-modelservice.modelArtifacts.name
Endpoint Model service access address, must include protocol and /v1 path http://<gateway-service>.<namespace>/v1

Method 1: Configure MaaS Model in Hydra

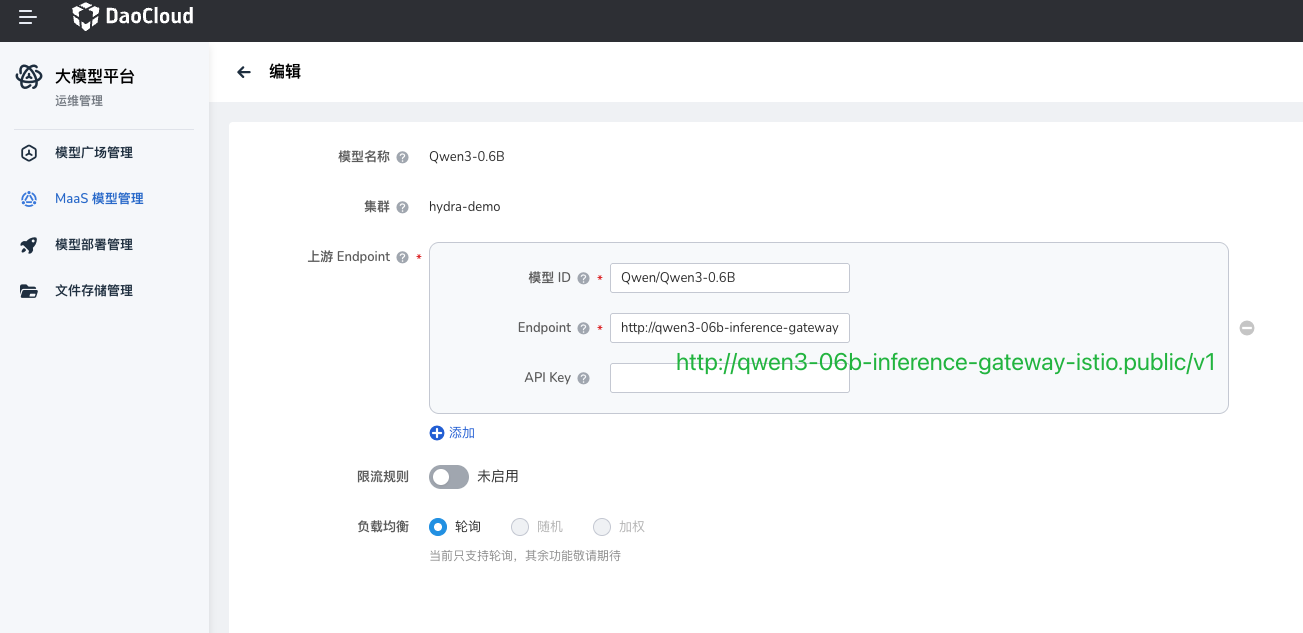

On the MaaS O&M management page, fill in the following core information for the target model:

  1. Model ID It is recommended to keep it consistent with the InferX model name, e.g.: Qwen/Qwen3-0.6B

  2. Endpoint InferX models are exposed uniformly through a Gateway. You can get the gateway address with the following command:

    NAMESPACE=public
RELEASE_NAME=qwen3-06b
kubectl -n ${NAMESPACE} get gateway/${RELEASE_NAME}-inference-gateway -o jsonpath='{.status.addresses[0].value}'

    Example output:

    qwen3-06b-inference-gateway-istio.public.svc.cluster.local

    Assemble the Endpoint:

    http://qwen3-06b-inference-gateway-istio.public.svc.cluster.local/v1

The Endpoint must include the protocol (http://) and path prefix (/v1).

export-hydra-mass

Verification

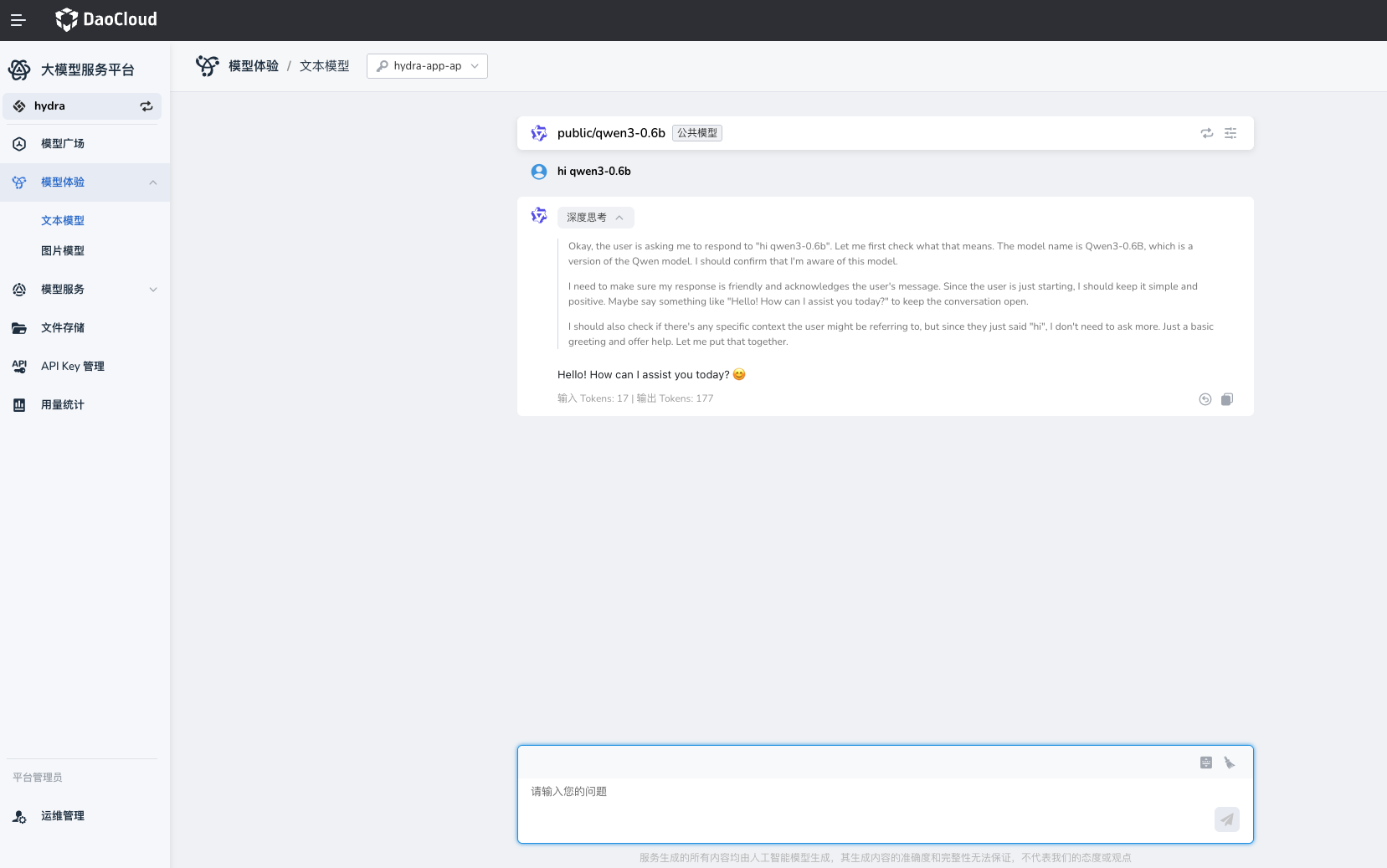

Verify through the Hydra model experience interface.

access-hydra-mass-model

Method 2: Manually Register Model Service in Knoway

The Knoway gateway supports registering model services via the LLMBackend CRD:

apiVersion: llm.knoway.dev/v1alpha1
kind: LLMBackend
metadata:
  name: custom-qwen3-06b
  namespace: default
spec:
  modelName: public/Qwen3-0.6B # Model name must be unique
  provider: vLLM
  upstream:
    baseUrl: http://qwen3-06b-inference-gateway-istio.public.svc.cluster.local/v1
    overrideParams:
      openai:
        model: Qwen/Qwen3-0.6B

Parameter description:

  • spec.modelName: The exposed model name (used for business calls), must be unique
  • spec.upstream.baseUrl: InferX Gateway address, must include /v1
  • spec.upstream.overrideParams.openai.model: The actual model name passed through to the inference service

Verification

First obtain the accessible address of the Knoway gateway (choose Istio, LoadBalancer, or NodePort based on the cluster exposure method), then send an inference request via command line to verify.

KNOWAY_ADDR=http://10.20.100.240:30633
MODEL_NAME="custom/Qwen3-0.6B"
API_KEY=<Your API Key here> # Knoway requires an authorized API Key

curl "$KNOWAY_ADDR/v1/chat/completions" \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $API_KEY" \
  -d @- <<EOF | jq .
{
  "model": "$MODEL_NAME",
  "messages": [
    {
      "role": "user",
      "content": "Say this is a test!"
    }
  ],
  "temperature": 0.7
}
EOF

If the response contains choices and no error information (e.g., error field), the model service is accessible.
