Model Weight Download and Configuration¶

Before deploying a large model inference service, you need to download the model weight files to a storage location accessible by the inference service.

It is recommended to use Dataset to manage model weights, which can automatically complete model download, PVC creation, and cross-namespace sharing, avoiding repeated downloads and simplifying model management.

If Dataset is temporarily unavailable in your environment, you can also mount existing model weight directories into the inference service Pod through PVC, shared storage CSI, or host directory mounting.

Model Weight Management Methods¶

InferX supports the following two model weight management methods:

Method	Description	Recommended
Dataset	Automatically downloads models and manages PVCs, supports cross-namespace sharing	Recommended
Other Mounts	Uses existing storage (PVC / NFS / HostPath)	Optional

Manage Model Weights with Dataset (Recommended)¶

What is Dataset¶

BaizeAI/Dataset is a Kubernetes Volume-based data management abstraction that simplifies the creation and maintenance of PersistentVolume (PV) and PersistentVolumeClaim (PVC), supporting multiple data source types. With Dataset, you can easily obtain data from different sources and automatically create PVCs to mount into workloads.

Type	Description
GIT	Download code repositories via Git protocol
S3	Read data from S3 or S3-compatible object storage
PVC	Reference an existing PVC to access its data
NFS	Mount remote directories via NFS protocol
HTTP	Download files via HTTP protocol
CONDA	Download Python packages using Conda
REFERENCE	Reference other Datasets to access corresponding data
HUGGING_FACE	Download model files from HuggingFace
MODEL_SCOPE	Download model files from ModelScope

For more detailed examples, please refer to the related documentation:

Dataset Installation¶

Option 1: Use DCE Hydra Built-in Dataset Capability¶

If Hydra is installed in your DCE environment, you can directly use Hydra's model weight download feature. Hydra implements model weight management based on Dataset without additional installation.

Option 2: Install Dataset Addon via DCE UI¶

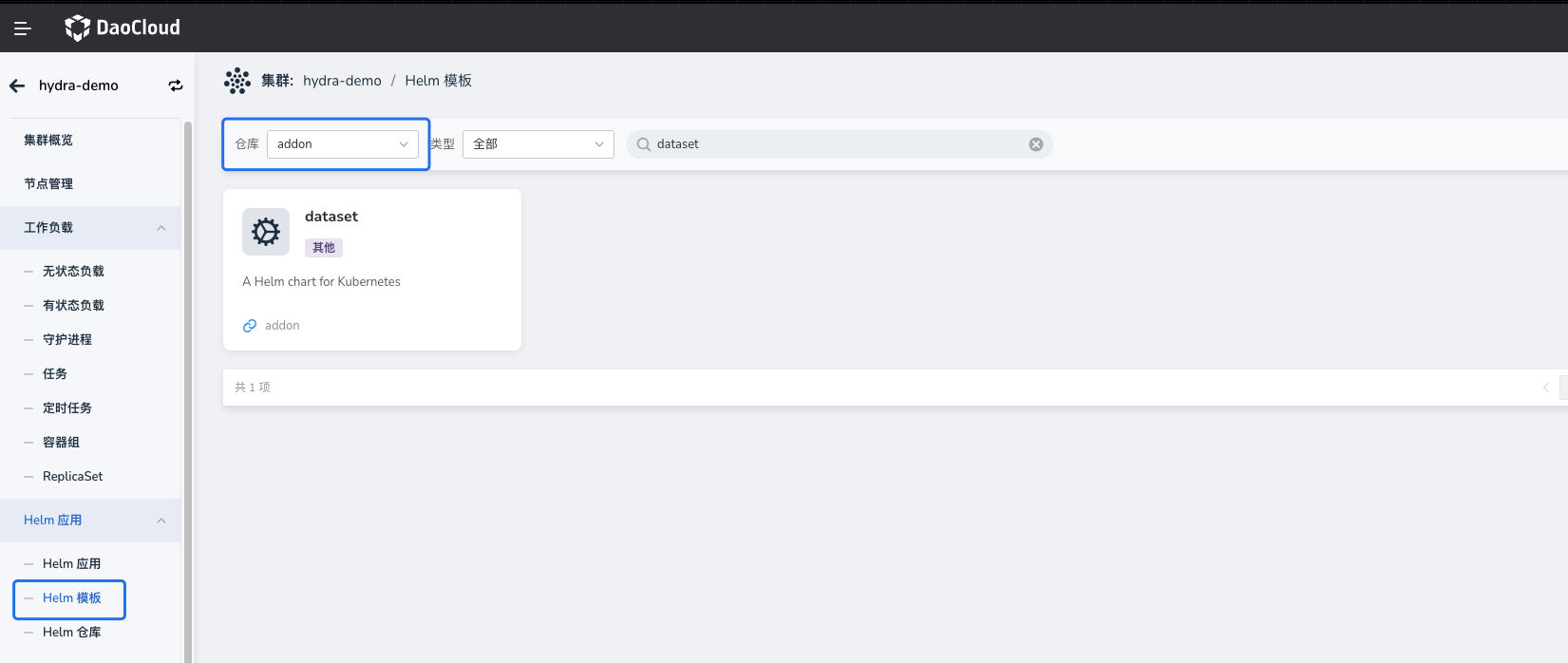

The DCE Addon repository has a built-in Dataset Helm Chart. You can install it with one click through the UI. After installation, you can create Dataset resources as needed.

dce addon dataset

Option 3: Manual Helm Installation of Dataset¶

helm repo add baizeai https://baizeai.github.io/charts
helm repo update
helm install dataset baizeai/dataset \
  -n dataset-system \
  --create-namespace

Model Weight Download¶

Create a Dataset to Download Model Weights¶

The following example creates a Dataset to download the Qwen3-0.6B model weights from ModelScope and allows other namespaces to reference the dataset.

apiVersion: dataset.baizeai.io/v1alpha1
kind: Dataset
metadata:
  name: qwen3-0-6b
  namespace: public
spec:
  share: true                     # Allow other namespaces to reference via REFERENCE
  source:
    options:
      repoType: MODEL
    type: MODEL_SCOPE             # Data source type is ModelScope
    uri: modelscope://Qwen/Qwen3-0.6B
    # If using HuggingFace, change type and uri to:
    # type: HUGGING_FACE
    # uri: huggingface://Qwen/Qwen3-0.6B
  # To customize storage class or capacity, configure volumeClaimTemplate:
  # volumeClaimTemplate:
  #   metadata: {}
  #   spec:
  #     resources:
  #       requests:
  #         storage: 100Gi
  #     storageClassName: juicefs-no-share-sc

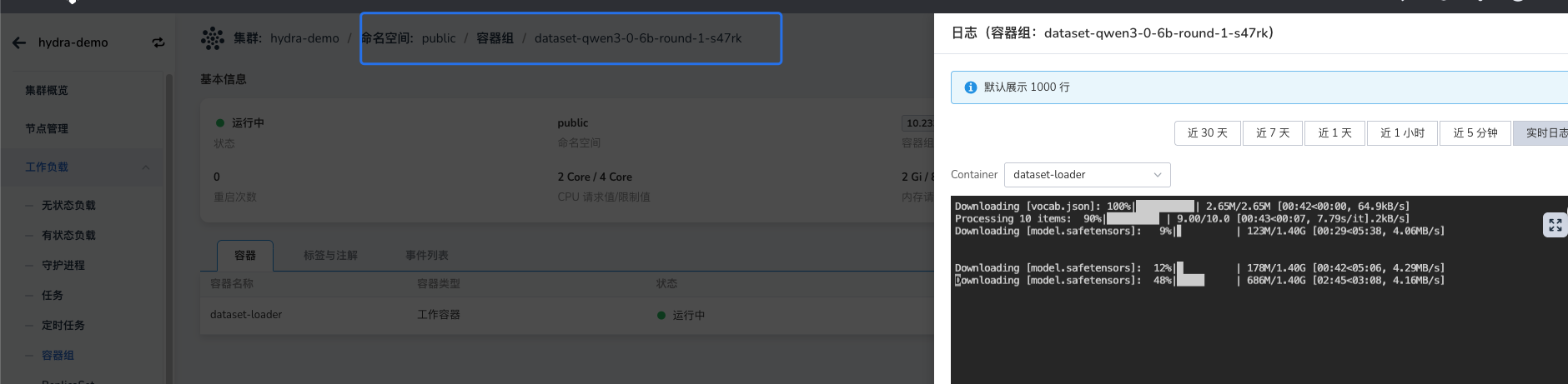

After creating the Dataset, the system automatically starts a Job to download the model weights to the corresponding PVC. You can check the Job logs to monitor download progress.

model-wh-download

In the Hydra model plaza, model weights are typically stored in the public namespace. To avoid repeated downloads, you can create a reference-type Dataset in the target namespace pointing to the existing weight data.

Note: The referenced Dataset must have spec.share: true set, and (if shareToNamespaceSelector is configured) the target namespace must be included.

apiVersion: dataset.baizeai.io/v1alpha1
kind: Dataset
metadata:
  name: inferx-modelcache-qwen3-0-6b
  namespace: default
spec:
  source:
    type: REFERENCE
    uri: dataset://public/qwen3-0-6b   # Format is dataset://[namespace]/[Dataset name]

Dataset and PVC Correspondence¶

By default, the PVC name created by Dataset is the same as the Dataset name, unless a PVC with the same name already exists in the target namespace. You can confirm the associated Dataset through the PVC's labels and owner information:

kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: inferx-modelcache-qwen3-0-6b
  namespace: default
  labels:
    baize.io/dataset-name: inferx-modelcache-qwen3-0-6b   # Associated Dataset name
  ownerReferences:
    - apiVersion: dataset.baizeai.io/v1alpha1
      kind: Dataset
      name: inferx-modelcache-qwen3-0-6b                 # Owning Dataset
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 100Ti
  volumeName: dataset-default-inferx-modelcache-qwen3-0-6b-34403596-d94
  storageClassName: nfs-hdd-csi
  volumeMode: Filesystem

Using Dataset Models in InferX¶

When deploying an InferX inference service, you can specify the PVC mount path for model weights via Helm Values. Here is an example snippet:

llm-d-modelservice:
  enabled: true
  llm-d-modelservice:
    modelArtifacts:
      name: "Qwen/Qwen3-0.6B"               # Model name, used to identify served-model-name
      uri: "pvc://inferx-modelcache-qwen3-0-6b/"   # Note: must use pvc://<PVC name>/<model subpath in PVC> format
      mountPath: /model-cache               # Mount path of model weights in the container, typically keep default
      labels:
        app: qwen3-0.6b                       # Label for model service Pods, must match inferencepool's matchLabels
        llm-d.ai/inference-serving: "true"

URI Format Description: pvc://<PVC name>/<model subpath in PVC>.

If the model files are in a subdirectory of the PVC, e.g., /model-cache/Qwen/Qwen3-0.6B, then uri should be: pvc://inferx-modelcache-qwen3-0-6b/Qwen/Qwen3-0.6B
If the model files are directly in the PVC root directory, you must still keep the trailing /, e.g.: pvc://inferx-modelcache-qwen3-0-6b/

Other Mount Methods¶

If Dataset is not installed in the cluster, or if model weights already exist in external storage, you can also use models directly through mounting.

Common methods include the following two.

Method 1: Mount Shared Storage via PVC¶

First prepare the model files in shared storage (e.g., NFS / JuiceFS), then create a PVC and reference it in InferX.

Example configuration:

llm-d-modelservice:
  enabled: true
  llm-d-modelservice:
    modelArtifacts:
      name: "Qwen/Qwen3-0.6B"
      uri: "pvc://custom-share-models/qwen06b"   # pvc://[shared directory PVC name][model path]
      mountPath: /model-cache
      labels:
        app: qwen3-0.6b
        llm-d.ai/inference-serving: "true"

Method 2: Mount Model Directory via Custom Container¶

In certain scenarios, model weights may be stored in directories not managed by CSI, such as:

Host local directory
Special object storage mount point
Custom file system

In this case, you can mount the host directory directly into the Pod via custom inference container configuration, and specify the model path through a custom startup command.
