Install kdoctor

This page describes how to install the kdoctor component.

Make sure your cluster has been successfully connected to the Container Management platform, then perform the following steps to install kdoctor.

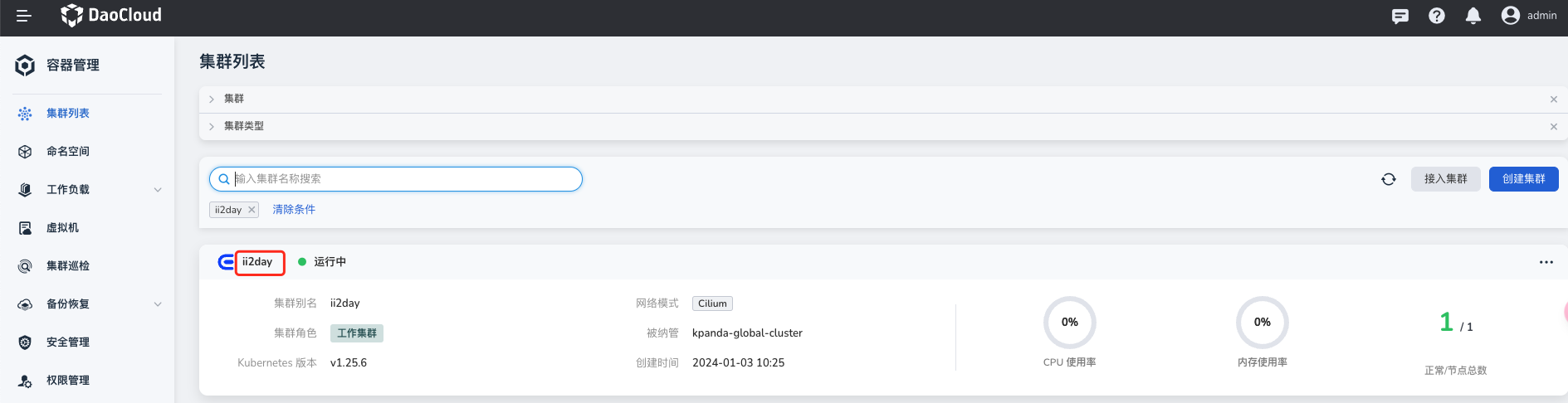

  1. In the left navigation bar, click Container Management -> Cluster List, and then find the name of the cluster where you want to install kdoctor.

    cluster

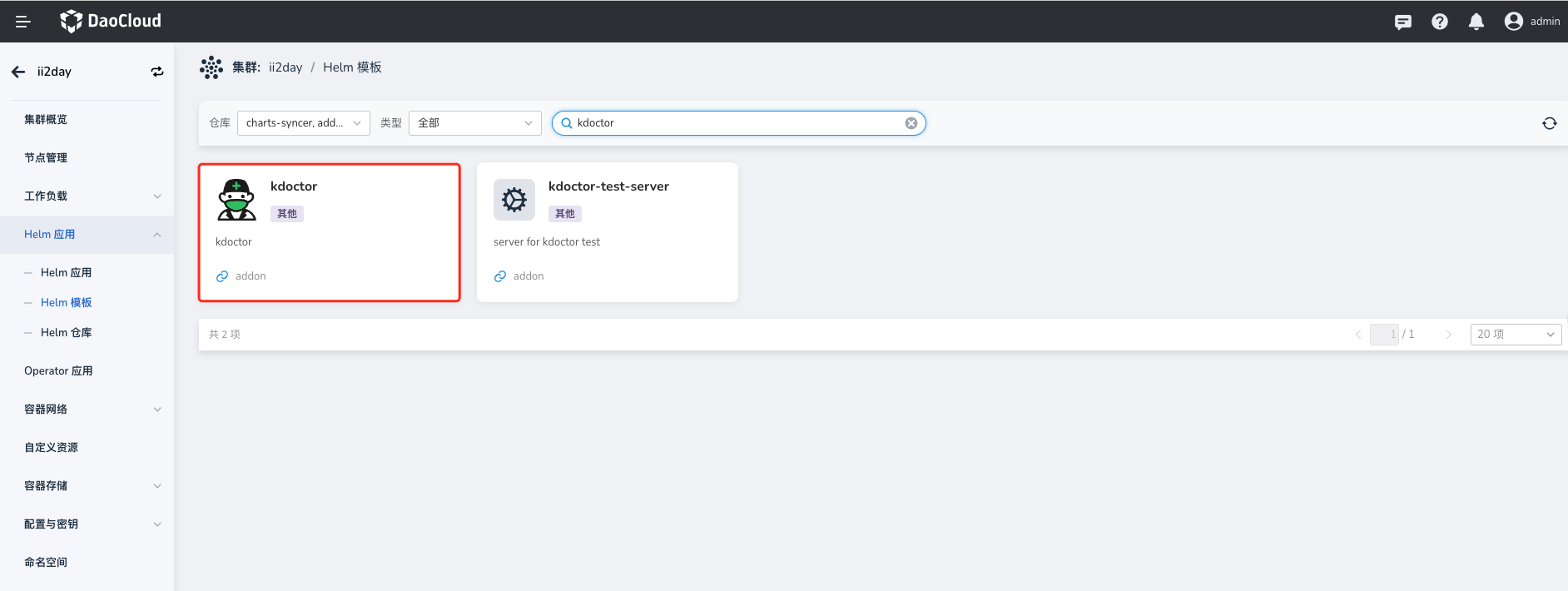

  2. In the left navigation bar, select Helm Apps -> Helm Templates, find and click kdoctor.

    helm

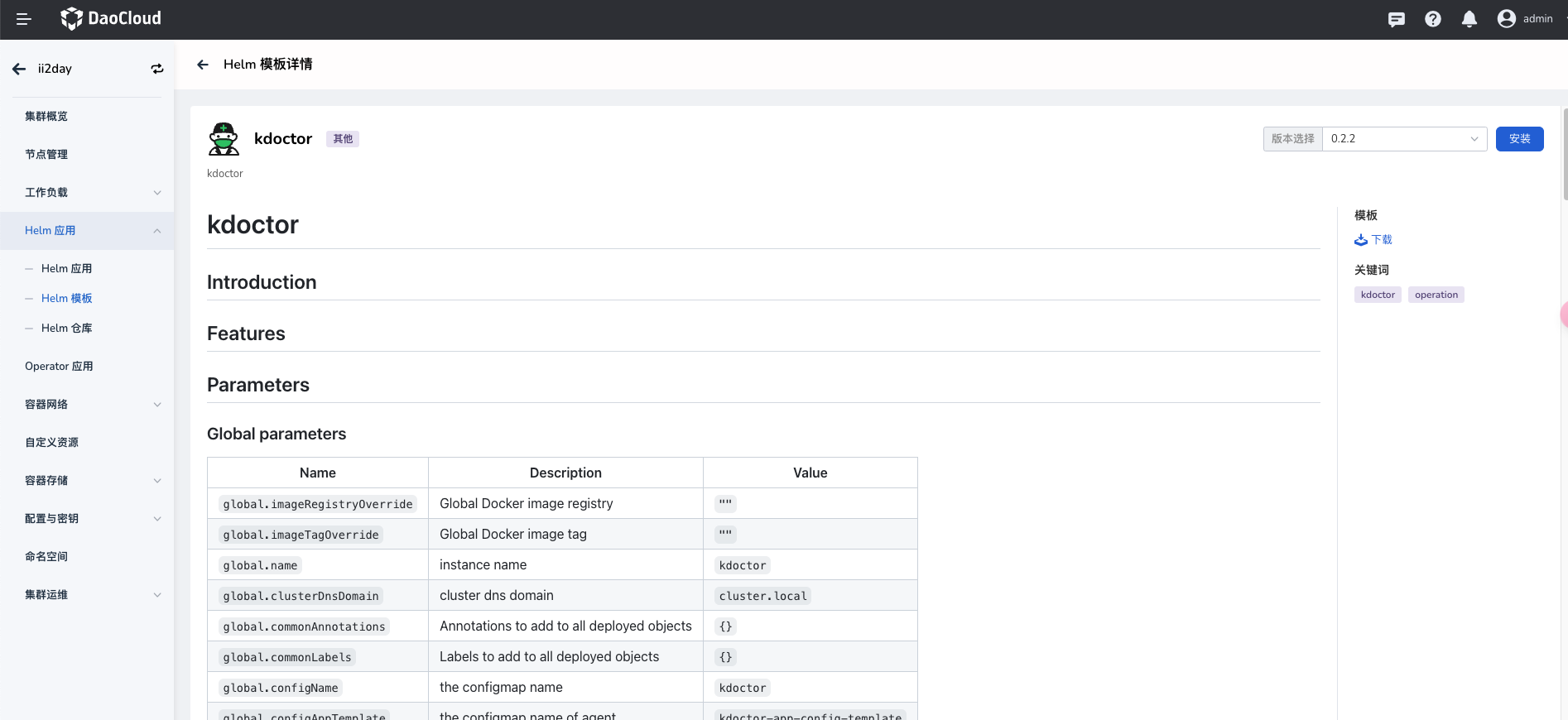

  3. In Version Selection, select the version you want to install and click Install.

    version

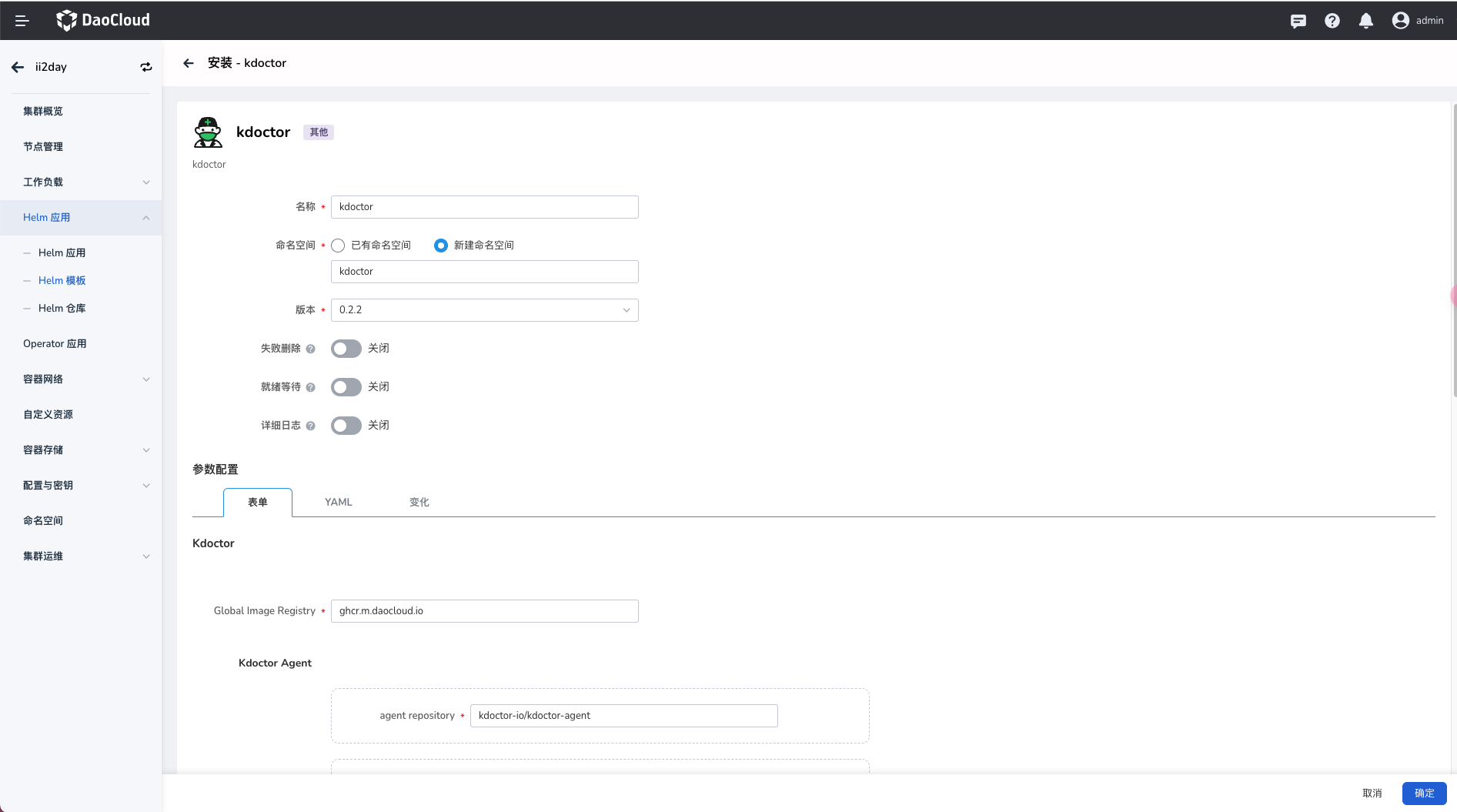

  4. On the installation page, fill in the required installation parameters.

    parameter1

    On the page above, enter the application name, namespace, and deployment options.

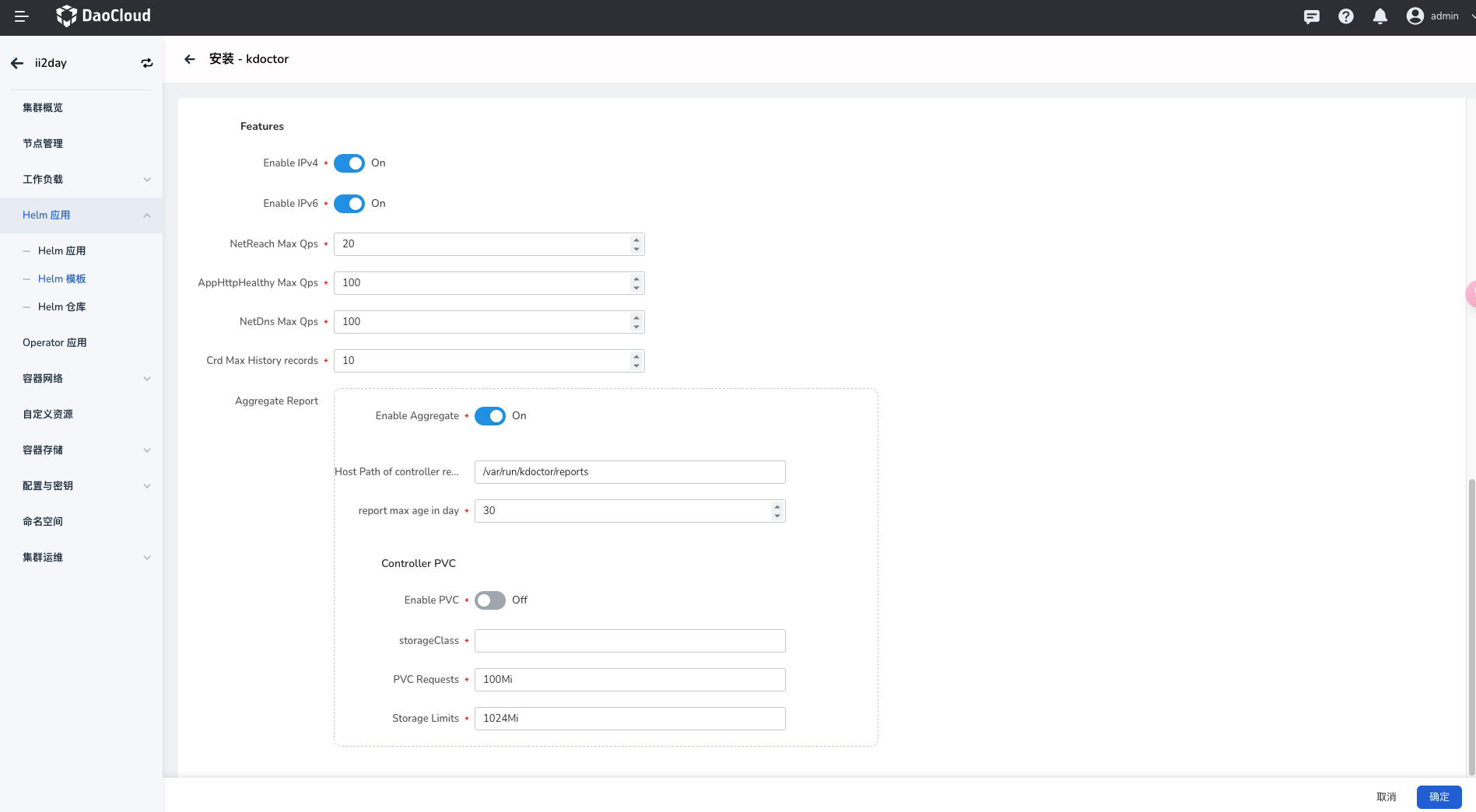

    parameter2

    The parameters in the figure above are described as follows:

    • Features -> Enable IPv4: If enabled, kdoctor enables IPv4-related network inspection functions.
    • Features -> Enable IPv6: If enabled, kdoctor enables IPv6-related network inspection functions.
    • Features -> NetReach Max Qps: The maximum QPS limit of a netreach task, to avoid excessive resource usage in the cluster caused by an overly large QPS.
    • Features -> AppHttpHealthy Max Qps: The maximum QPS limit of an AppHttpHealthy task, to avoid excessive resource usage in the cluster caused by an overly large QPS.
    • Features -> NetDns Max Qps: The maximum QPS limit of a NetDns task, to avoid excessive resource usage in the cluster caused by an overly large QPS.
    • Features -> Crd Max History records: The maximum number of historical records displayed when obtaining the task status.
    • Features -> Aggregate Report -> Enable Aggregate: If enabled, you can view kdoctor task reports through the Kubernetes aggregated API.
    • Features -> Aggregate Report -> Host Path of controller report: The host storage path of task reports.
    • Features -> Aggregate Report -> report max age in day: The maximum lifecycle of a report.
    • Features -> Aggregate Report -> Controller PVC -> Enable PVC: If enabled, a PVC is used to store kdoctor reports.
    • Features -> Aggregate Report -> Controller PVC -> storageClass: The storageClass name.
    • Features -> Aggregate Report -> Controller PVC -> PVC Requests: The required size and capacity of the PVC.
    • Features -> Aggregate Report -> Controller PVC -> Storage Limits: The maximum limit of Storage.

  5. For more advanced configuration, click the YAML tab to configure through YAML. Click the OK button in the lower right corner to complete the creation.
