Create an Ingress¶

In a Kubernetes cluster, Ingress exposes services from outside the cluster to inside the cluster HTTP and HTTPS ingress. Traffic ingress is controlled by rules defined on the Ingress resource. Here's an example of a simple Ingress that sends all traffic to the same Service:

ingress-diagram

Ingress is an API object that manages external access to services in the cluster, and the typical access method is HTTP. Ingress can provide load balancing, SSL termination, and name-based virtual hosting.

Prerequisites¶

Container management module connected to Kubernetes cluster or created Kubernetes, and can access the cluster UI interface.
Completed a namespace creation, user creation, and authorize the user as NS Editor role, for details, refer to Namespace Authorization.
Completed Create Ingress Instance, Deploy Application Workload, and have created the corresponding Service
When there are multiple containers in a single instance, please make sure that the ports used by the containers do not conflict, otherwise the deployment will fail.

Create ingress¶

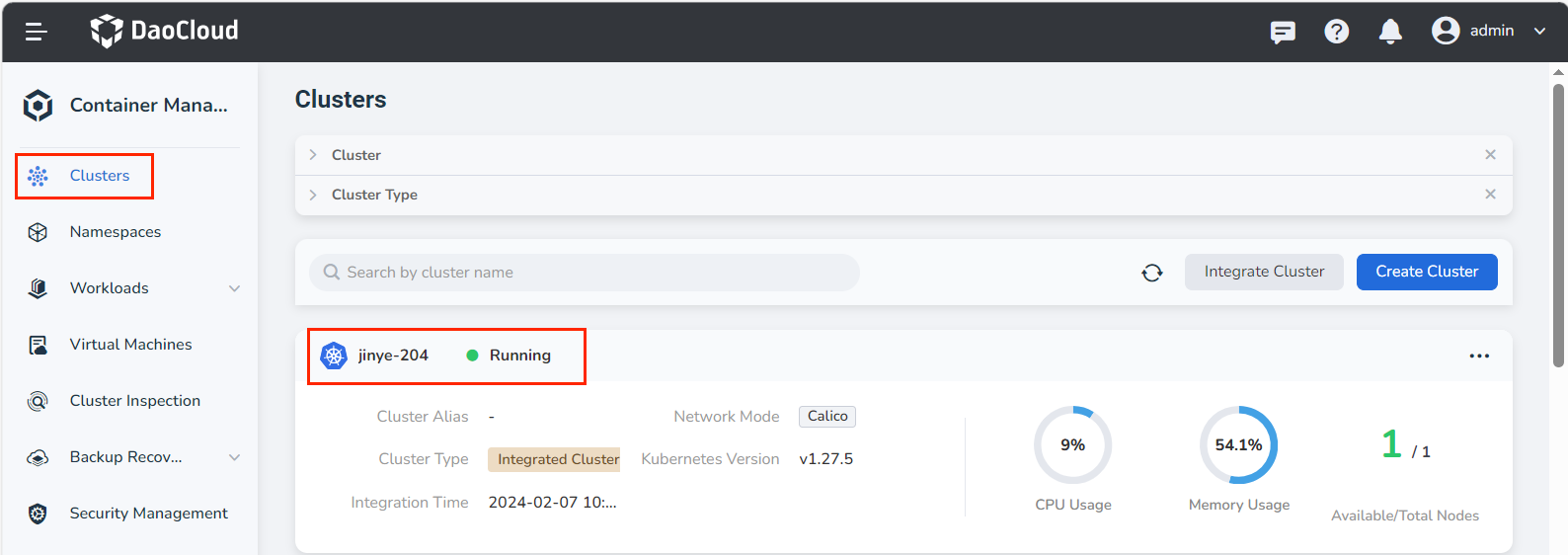

After successfully logging in as the NS Editor user, click Clusters in the upper left corner to enter the Clusters page. In the list of clusters, click a cluster name.

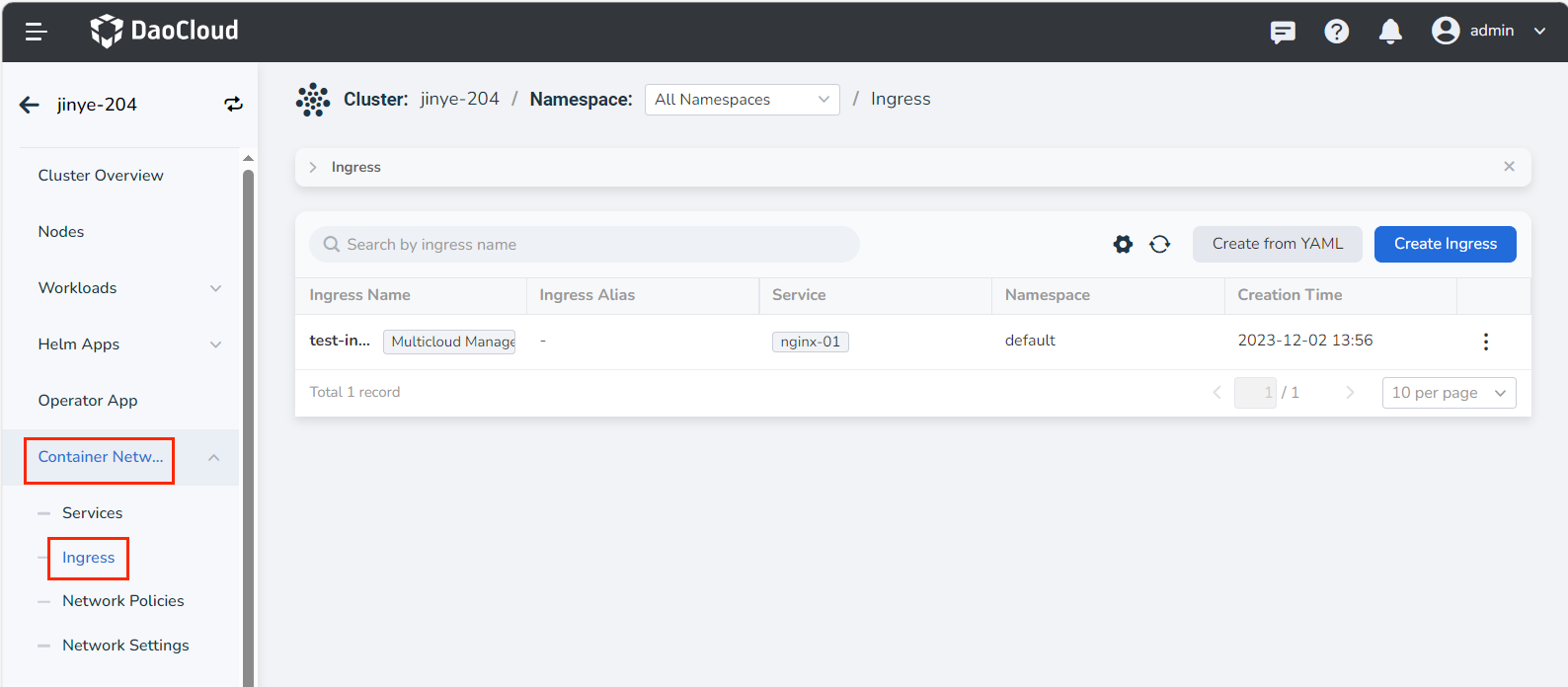

In the left navigation bar, click Container Network -> Ingress to enter the service list, and click the Create Ingress button in the upper right corner.

Note

It is also possible to Create from YAML .
Open Create Ingress page to configure. There are two protocol types to choose from, refer to the following two parameter tables for configuration.

Create HTTP protocol ingress¶

Enter the following parameters:

Create Ingress

Field	Subfield	Description	Required
Ingress Name	–	Enter the name of the new ingress	Required
Namespace	–	Select the namespace where the new service is located. For more information about namespaces, refer to the namespace overview.	Required
Set Routing Rules	Domain Name	Use the domain name to provide external access services. The default is the domain name of the cluster.	Required
	Protocol	Refers to the protocol that authorizes inbound access to the cluster service, and supports HTTP (no identity authentication required) or HTTPS (identity authentication needs to be configured).	Required
	Forwarding Policy	Specify the access policy of the Ingress	Optional
	Path	Specify the URL path for service access. The default is the root path.	Optional
	Target Service	The name of the service to be routed	Required
	Target Service Port	The port exposed by the service	Required
Load Balancer Type	Platform-level Load Balancer	In the same cluster, share the same Ingress instance, where all Pods can receive requests distributed by the load balancer	Required
	Tenant-level Load Balancer	The Ingress instance belongs exclusively to the current namespace, or exclusively to a certain workspace that includes the current namespace, and all Pods can receive distributed requests	Required
Ingress Class	–	Select the corresponding Ingress instance, and after selection, traffic is directed to the specified instance. When it is None, DefaultClass is used	Optional
	Session Persistence	Session persistence is divided into L4 source address hash / Cookie Key / L7 Header Name. Once enabled, session persistence is performed according to the rules.	Optional
Session Persistence	L4 Source Address Hash	When enabled, by default the following is added to the Annotation: `nginx.ingress.kubernetes.io/upstream-hash-by: "$binary_remote_addr"`	Optional
	Cookie Key	When enabled, connections from a specific client will be passed to the same Pod. Default Annotation: `nginx.ingress.kubernetes.io/affinity: "cookie"` , `nginx.ingress.kubernetes.io/affinity-mode: persistent`	Optional
	L7 Header Name	When enabled, default Annotation: `nginx.ingress.kubernetes.io/upstream-hash-by: "$http_x_forwarded_for"`	Optional
Path Rewriting	–	rewrite-target, used for URL rewriting when the URL exposed by the backend service differs from the Ingress path	Optional
Redirect	–	permanent-redirect, permanent redirection. After entering the rewrite path, access will be redirected to that address	Optional
Traffic Distribution	Based on Weight	After setting the weight, Annotation: `nginx.ingress.kubernetes.io/canary-weight: "10"`	Optional
	Based on Cookie	After the Cookie rules are set, traffic is distributed according to the Cookie conditions	Optional
	Based on Header	After the Header rules are set, traffic is distributed according to the Header conditions	Optional
Labels	–	Add labels to the ingress	Optional
Annotations	–	Add annotations to the ingress	Optional

Create HTTPS protocol ingress¶

Enter the following parameters:

Create Ingress

Note

Note: Unlike the Set Routing Rules of the HTTP protocol, you additionally need to select a certificate by secret; other configurations are basically the same.

Protocol : Required. Refers to the protocol that authorizes inbound access to the cluster service, and supports the HTTP (no identity authentication required) or HTTPS (identity authentication needs to be configured) protocol. Here select the ingress of the HTTPS protocol.
Secret : Required. HTTPS TLS certificate, Create Secret.

Create ingress successfully¶

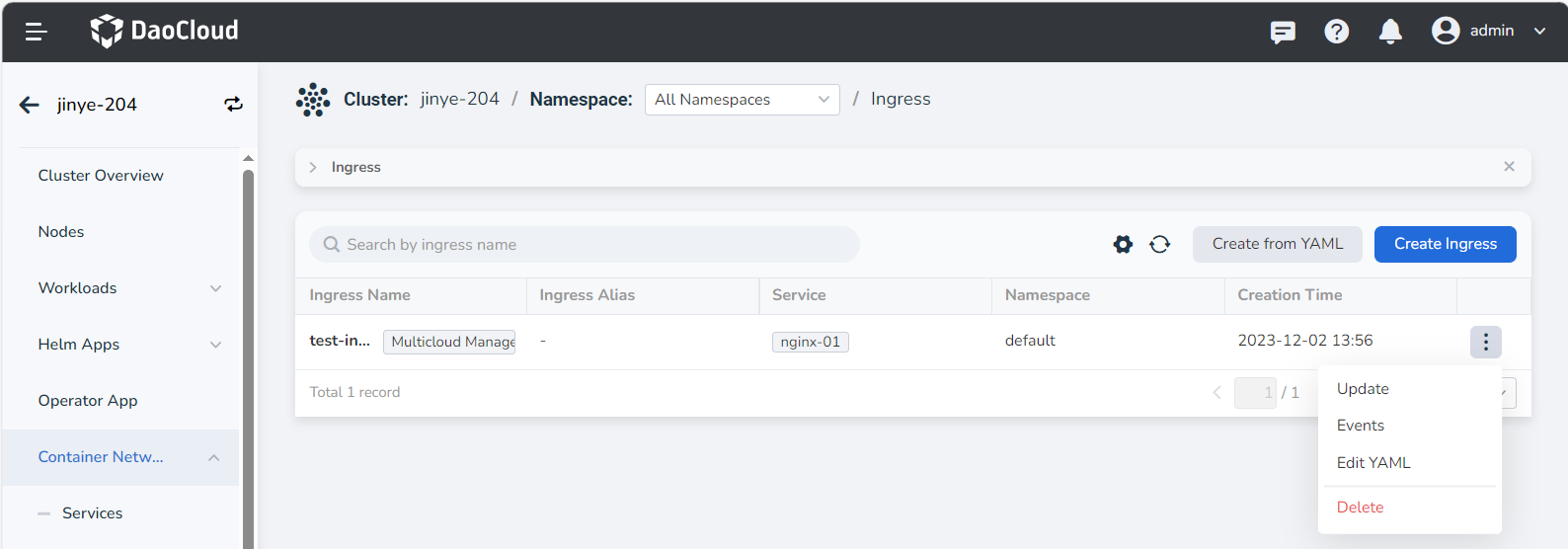

After configuring all the parameters, click the OK button to return to the ingress list automatically. On the right side of the list, click ┇ to modify or delete the selected ingress.

Ingress List
